Kenwood

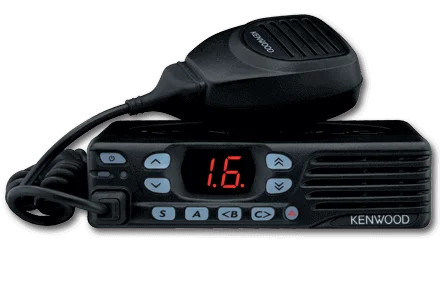

TK-7302HV/8302HU

KENWOOD's TK-7302HV and TK-8302HU mobile radios deliver reliable mobile performance with extra wideband coverage (UHF: 70MHz) and such features as QT/DQT signaling, multiple scan functions and a voice inversion scrambler. Yet these tough IP54/MIL-STD-compliant radios are decidedly user-friendly, providing high-quality audio, voice announcement, and large displays with adjustable brightness for simple operation, day and night.

Performance Characteristics

Frequency Band:
VHF/ UHF

Frequency Range:
136-174 MHz / 450-520 MHz

Power Output:
5W - 25W, 5W - 50W, 5W - 45 W

Number of Channels/Groups/Zones:
16 Channels / 2 Zones

Channel spacing:
25 kHz Wide /12.5 kHz Narrow

Physical Characteristics

Dimensions W x H x D
6.3 x 1.7 x 5.4 in

Weight
41.6 oz

Keypad / Keys
9 Programmable Function Keys

Display
2-Digit LED Channel Display

User Environment

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F

IP Standards
IP54/55

Request A Quote

Conventional Zones
Single Priority Scan
Single / Multi-Zone Scan
2-Digit LED Channel Display
Function/Status LED Dots
Blue Function/Status LED
Transmit /Busy / Call Alert LED
Backlit Keys
9 Programmable Function Keys
Emergency / AUX Key
Front Panel Speaker
Companded Audio
Voice CH# Announcement (8 Languages)
Voice Inversion Scrambler Built-in
16 Scrambler Codes (per CH)
Encryption Board Control
Emergency Call Features
Lone Worker Alert
QT / DQT
Operator Selectable Tone
Two-Tone Decode
Single & Two-Tone Encode
DTMF Encode / Decode
Special Alert Tone Patterns
Busy Channel Lockout
Time Out Timer
DB15 Accessory Interface
8 Programmable I/O Ports
Ignition Sense
Public Address / Horn Alert Output
MIL-Spec Standard Mic
MIL-Spec 12-Key DTMF Mic Option
Windows® Programming & Tuning
Cloning

Brochures

KENWOOD TK-7302(H)V/8302(H)U Brochure

Control Station Accessories [+]

	KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). (mobile mounting hardware included)
	KMC-59C Control Station Desktop Microphone (8-pin mod. plug) Note: Compatible with FDMA (analog) and TDMA operations.
	KMC-9C Control Station Desktop Microphone (8-pin mod. plug)
	KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Microphones And Speakers [+]

	KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in)
	KES-5 External speaker, 40W max input Note: requires KCT-60M installed.
	KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
	KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

	KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option)
	KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft)
	KCT-60M DB15-to-15pin Molex Adapter Cable
	KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max).
	KMB-10 Key lock adapter
