Kenwood

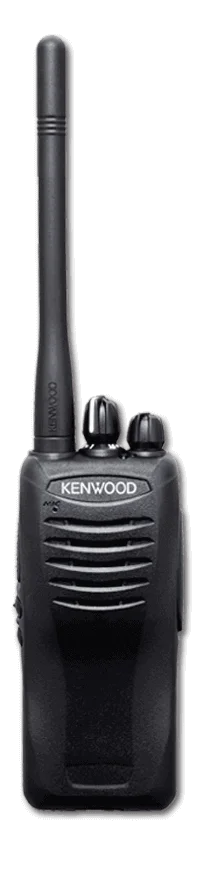

TK-2400V/3400U

Slim, thin and light KENWOOD's TK-2400 and TK-3400 are supremely easy to handle and to operate. Yet these handy compact radios are extremely reliable, meeting the famously tough MIL-STD 810 C/D/E/F and G specifications. With their well-balanced performance, it makes perfect business sense - especially for inventory control and service industry operations.

Performance Characteristics

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz (TK2400) / 450-520 MHz (TK-3400)

Power Output:
1-2W

Standard battery chemistry type:

Battery life (based on a 5-5-90 duty cycle):
17 hours

Number of Channels/Groups/Zones:
16 Channels

Channel spacing:
25kHz Wide / 12.5kHz Narrow

Physical Characteristics

Dimensions W x H x D (with standard battery)
2.13 x 4.8 x 1.32 in

Weight (with standard battery)
9.9 oz

Keypad / Keys
No Keypad

Display
No Display

User Environment

Operating temperature
-22˚ F to + 140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

Request A Quote

Single Priority / Normal Scan
Transmit / Busy / Call Alert Scan / Warn LED
4-Color LED (Blue/Red/Green/Orange)
2 PF Keys
W Speaker Audio
Enhanced KENWOOD Audio
Companded Audio (per CH)
Voice Annunciation
VOX Ready
Voice Inversion Scrambler Built-in
16 Scrambler Codes (per CH)
Emergency Call Features
Lone Worker Alert (per CH)
QT / DQT
Two-Tone Decode
Single / Two-Tone Encode
DTMF Encode / Decode
Special Alert Tone Pattern
Time Out Timer
Busy Channel Lockout
Low Battery Warning
Battery Saver Windows ® Programming & Tuning
Wireless Cloning
Password Protection

Brochures

KENWOOD TK-2400/3400 Brochure

Antenna [+]

	KRA-22M VHF low-profile antenna 148-162 MHz
	KRA-22M VHF low-profile antenna 162-174 MHz
	KRA-22M VHF Low-profile helical antenna 136-150 MHz
	KRA-23M UHF low-profile antenna 450-490 MHz
	KRA-23M3 UHF Low-profile helical antenna 403-430 MHz
	KRA-26M VHF helical antenna 146-162 MHz
	KRA-26M2 VHF helical antenna 162-174 MHz
	KRA-26M3 VHF helical antenna 136-150 MHz
	KRA-27M UHF whip antenna 440-490 MHz
	KRA-27M2 UHF whip antenna 470-520 MHz
	KRA-41M VHF stubby antenna 148-162 MHz
	KRA-41M2 VHF stubby antenna 162-174 MHz
	KRA-41M3 VHF stubby antenna 136-150 MHz
	KRA-42M UHF stubby antenna 440-490 MHz
	KRA-42M2 UHF stubby antenna 470-520 MHz

Batteries and Charging [+]

	KMB-28AK Six Unit Charger Adapter for the KSC-23BK/28/35SK chargers (chargers not included) Note: The six KSC-xx AC wall Adapters are NOT used in the KMB-28 installation A supplied in-line AC-DC switching power supply with six DC plugs supply the six installed KSC-xx charger bases. This unit is lower profile and less weight than similar Kenwood six unit charger adapters.
	KNB-29N 1500 mAh, NiMH battery - requires KSC-43K charger
	KNB-45L 2000 mAh, Li-ion battery - requires KSC-35K/SK charger
	KNB-69L 2550 mAh, Li-ion battery - requires KSC-35K/SK charger
	KSC-35SK 110~220 volt Fast rate single unit charger for KNB-45L/69L
	KSC-43K 110~220 volt Fast rate single unit charger for KNB-29N/45L/69L
	KNB-69L 2550 mAh, Li-ion battery - requires KSC-35K/SK charger
	KSC-35SK 110~220 volt Fast rate single unit charger for KNB-45L/69L
	KSC-43K 110~220 volt Fast rate single unit charger for KNB-29N/45L/69L
	KVC-22 110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included)

Carry Accessories [+]

KBH-10

Spring action belt clip

KBH-8DS

Leather swivel belt loop with portable D-Ring attachment

KLH-187

Nylon case for TK-*200/*202/*300/*302/*400/*402 Series

Microphones and Audio Accessories [+]

	KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics
	KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic [KEP-2 & KMC-21 are not plug-compatible]
	KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT
	KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT
	KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear
	KHS-26 Clip Mic w/earphone
	KHS-27A D-Ring Ear Hanger w/PTT & Mic
	KHS-31C C-Ring Ear Hanger w/PTT & Mic
	KHS-7 Single muff headset w/boom mic
	KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT
	KHS-8BL Two-Wire palm mic w/earphone (black)
	KHS-9BL Three-Wire lapel mic w/earphone (black)
	KMC-21 Compact speaker microphone
	KMC-45D MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack)
	KMC-48GPS GPS Speaker Microphone
