Kenwood

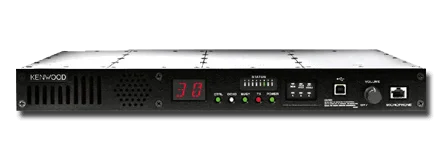

NXR-5700/5800

Over 7 times faster and with 15 times more capacity than the previous models, the KENWOOD NXR-5700 and NXR-5800 NEXEDGE repeaters represent a breakthrough in performance. Extensive data storage means they can support everything from analog/digital conventional systems up to a highly sophisticated NEXEDGE Generation2 (Gen2) multi-site digital trunked network. And further adding to their future-proof credentials is upcoming support for Digital Simulcast. Stay ahead of the curve, with cutting-edge communications.

Performance Characteristics

Frequency Band:
VHF, UHF

Frequency Range:
136-174 MHz (NXR-5700)
450-520 MHz 400-470 MHz 350-400 MHz (NXR-5800)

Power Output:
5/5/0.5 W

Number of Channels/Groups/Zones:
1 Channel

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 7.5 / 12.5 / 15 kHz, 6.25 / 12.5 kHz Digital

Physical Characteristics

Dimensions W x H x D
19.02 x 1.73 x 13.03 in

Weight
11 lb

Keypad / Keys
No Keypad

Display
Two-Digit Numeric Display

User Environment

Operating temperature
-22°F to +140°F

Mil spec
N/A

IP Standards
N/A

Request A Quote

NXDN Conventional / Trunk
- Conventional
- Conventional IP Network
- NEXEDGE Type-C Network
- NEXEDGE Type-C Gen2 Network
Mixed Mode Operation - Digital / Analog FM
Power Output - 25 W / 0.5 Watts (100% Duty)
IP LAN/WAN Connectivity
Ethernet Network Interface
SNMP Protocol Ready
Frame Error Rate (FER) / RSSI Output
Built-In 0.5 ppm TCXO
70 MHz UHF Coverage
6.25 & 12.5 kHz Bandwidth
Two-Digit Numeric Display
LED Status Indicators
USB 2.0 Type-B Interface
UID & GID Validation
NXR Over-the-Air Alias
6-Programmable Function Keys
0.3 W Front Panel Speaker / 3-W External Speaker Audio
Remote Termination Interface
Programmable AUX I/O's
DTMF Remote Control
Remote System Firmware Updates
Program / Modem Interface
Digital Voting
RF Link
Digital Simulcast
