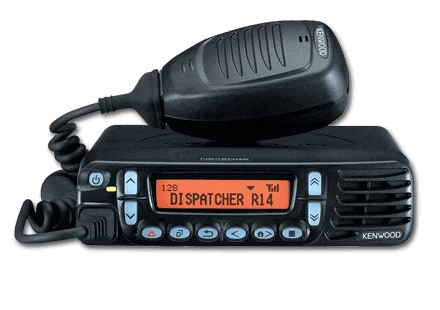

KENWOOD NX-900/901 Radios Airwave Communications Motorola Two Way Radio Dealer Serving CA and AZ.

Kenwood

NX-900/901

KENWOOD’s NX-900 and NX-901 mobile radios provide NEXEDGE™ digital trunking, LTR® Trunking and conventional analog operation in the 800 MHz band. KENWOOD's groundbreaking NEXEDGE® very narrow band digital technology has expanded to include 800 MHz RF infrastructure and portable and mobile subscriber radios. NEXEDGE® 800 MHz digital operating mode utilizes the NXDN digital air interface for conventional and trunking operation plus analog mode in both conventional and trunking (LTR).

Performance Characteristics

Frequency Band:
800/900 MHz

Frequency Range:
806-825, 851-870 MHz / 896-902, 935-941 MHz

Power Output:
5W - 15W

Number of Channels/Groups/Zones:
512 Channels / 128 Zones

Channel spacing:
12.5 / 25 kHz, 12.5 kHz Analog
6.25 / 12.5 kHz Digital

Physical Characteristics

Dimensions W x H x D
6.30 x 1.77 x 6.18 in

Weight
3.08 lb

Keypad / Keys
6 Front PF Keys

Display
14-Character Alphanumeric Aliases

User Environment

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

Request A Quote

Dash & Remote Mount
Backlit Dot Matrix LCD
Function/Status LCD Icons
Multi-Language Display
Date & 12/24 Hour Time Clock
Transmit/Busy/Call Alert/Warn LED
On/Off Power Control
4 Up/Down Selectors
Emergency/AUX Key
4W Speaker Audio
DB-25 Accessory Connector
9 Programmable AUX I/Os
2 Programmable AUX Outputs
KPG-111D Windows® FPU
Flash Firmware Upgrading
NXDN® Conventional & Conventional IP Networks
NXDN® Trunked Single Site & Multi-site Network Capability
6.25 & 12.5 kHz NXDN® Digital Modes; 25 & 12.5 kHz Analog Modes
MDC-1200
FleetSync®/II (FM)
PC Serial Interface
SDM Manual Input
Transparent Data Mode
GPS Receiver Option
VGS-1 Voice Guide / Voice & GPS Data Storage Option

Brochures

KENWOOD NX-900/901 Brochure

Control Station Accessories [+]

	KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). (mobile mounting hardware included)
	KMC-59C Control Station Desktop Microphone (8-pin mod. plug) Note: Compatible with FDMA (analog) and TDMA operations.
	KMC-9C Control Station Desktop Microphone (8-pin mod. plug)
	KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Microphones And Speakers [+]

	KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in)
	KES-5 External speaker, 40W max input Note: requires KCT-60M installed.
	KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
	KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

	KAP-2 Horn Alert/P.A. Relay Option Note: For MPT, HA operates in Trunked Mode only.
	KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option)
	KCT-23M DC Cable (35-50W Dash mount; pos/neg. 10 ft. leads)
	KCT-23M3 DC Cable (35-50W Remote mount; pos.23 ft.; neg. 3.3. ft. leads)
	KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft)
	KCT-46 Ignition sense cable (plugs directly into mobile chassis ignition sense line).
	KCT-60M DB15-to-15pin Molex Adapter Cable
	KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max).
	KMB-10 Key lock adapter
	KRK-10 Remote Control Kit (a remote control cable (23 ft) is included).
