Kenwood

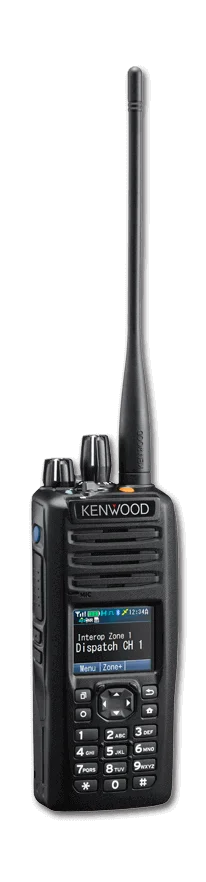

NX-5200/5300/5400

Round-the-clock public safety operations - police, fire and EMS - can be extremely demanding for both personnel and equipment. The NX-5000 Series radios are robust and offer clear mission-critical communications in numerous environments - even with sirens in the background. Advanced emergency features, such as man-down detection and ease of operation, even with gloves, make NX-5000 Series radios the perfect choice to enhance safety in the line of duty.

Thanks to multi-digital operation, NEXEDGE® offers a flexible communications system that is ideal for a wide range of industries and fields - ranging from utilities and traffic agencies to schools, taxi services and security companies. What's more, top-of-the-line features such as the transflective display for easy viewing in sunshine, GPS capability and Bluetooth® connectivity all contribute to enhanced efficiency and cost-effectiveness. From top to bottom, the NX-5200, NX-5300, and NX-5400 Series radios mean business.

Performance Characteristics

Frequency Band:
VHF/UHF/700MHz/800MHz

Frequency Range:
136-174 MHz / 450-520 MHz, 380-470 MHz / 763-776, 851-870 MHz

Power Output:
1W – 6W / 1W – 5W / 1W – 3W

Standard battery chemistry type:
Li-ion

Battery life (based on a 5-5-90 duty cycle):
11 Hours

Number of Channels/Groups/Zones:
1024 Channels / 128 Zones (Up to 4,000 with option)

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Physical Characteristics

Dimensions W x H x D (with standard battery)
2.28 x 5.47 x 1.56 in

Weight (with standard battery)
14.3 oz

Keypad / Keys
4-way Directional-pad (D-pad) and 2-Position Lever Switch

Display
Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display

User Environment

Operating temperature
-22°F to +140°F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55/67/68

Request A Quote

Multi-Digital Operation in two of NXDN, DMR & P25 (Phase 1 & 2)
NXDN Conventional and Type-C & Gen2 Trunking
DMR Tier III Trunking
S-Trunking (Ver. UP)
DMR Auto Slot Select
Site Roaming
DMR Tier II conventional
Mixed Digital & FM Analog Operation
Large, Color 1.74" (240 x 180 pixels) Transflective TFT Display
Built-in GPS Receiver/Antenna
Built-in Bluetooth
Built-in 56-bit DES & Optional 256-bit AES Encryption (NXDN & P25)
Active Noise Reduction (ANR)
Built-in Motion Sensor & Advanced Staff Save Functions
microSD/microSDHC Memory Card Slot
Intelligent Battery System Option
IP67/68 Immersion and MIL-STD-810 C/D/E/F/G
Intrinsically Safe Option

Brochures

Antenna [+]

	KRA-22M VHF low-profile antenna 148-162 MHz
	KRA-22M VHF low-profile antenna 162-174 MHz
	KRA-22M VHF Low-profile helical antenna 136-150 MHz
	KRA-23M UHF low-profile antenna 450-490 MHz
	KRA-23M2 UHF low-profile antenna 470-520 MHz
	KRA-23M3 UHF Low-profile helical antenna 403-430 MHz
	KRA-25 High-gain VHF helically loaded whip antenna 148-162 MHz
	KRA-26M VHF helical antenna 146-162 MHz
	KRA-26M2 VHF helical antenna 162-174 MHz
	KRA-26M3 VHF helical antenna 136-150 MHz
	KRA-27M UHF whip antenna 440-490 MHz
	KRA-27M2 UHF whip antenna 470-520 MHz
	KRA-27M3 UHF whip antenna 400-450 MHz
	KRA-28 Broadband VHF helically loaded whip antenna 140-170 MHz
	KRA-29 Broadband UHF Whip Antenna 380-430 MHz
	KRA-32K 700/800 MHz Whip Antenna
	KRA-36 700/800 MHz Stubby Antenna

Batteries and Charging [+]

	KBP-8M AA Alkaline Refillable Battery Pack (12 AA: 9V). Cells not included. Note: The color of the case is International Orange.
	KNB-L1M Li-ion 2000mAh (Compact Slim)
	KNB-L2M Li-ion 2600mAh (Standard)
	KNB-L3M Li-ion 3400mAh (High Capacity)
	KNB-LS5CU CSA US Intrinsically Safe Battery Li-ion 2000mAh Note:Due to the I.S. circuitry on the KNB-LS5CU, the cells may lose charge during storage. To prevent loss of capacity during storage, charge the battery for 10 minutes at least every 4 months with the KSC-32, KSC-Y32K, KSC-326K or KSC-326AK. [Intrinsically Safe Option]
	KNB-LS7M CSA US Intrinsically Safe Battery Li-ion 3800mAh Note:Due to the I.S. circuitry on the KNB-LS7M, the cells may lose charge during storage. To prevent loss of capacity during storage, charge the battery for 10 minutes at least every 4 months with the KSC-32, KSC-Y32K, KSC-326K or KSC-326AK. [Intrinsically Safe Option]
	KNB-N4M Ni-MH 2500mAh
	KSC-32 Rapid-rate single-unit charger for KNB-31A/32N/33L/41NC/43L/47L/48L/50NC Note: Includes 110/220V auto-switching AC adapter with U.S.-style line cord plug; requires plug adapter for 220V Euro-style outlets (not supplied).
	KSC-326AK Rapid-rate 6-unit charger CEC Compliant
	KSC-Y32K Rapid-rate single-unit charger (Long-Life Charge Mode capable with KAS-12 Software)
	KVC-15 Rapid-rate DC vehicular charger adapter for the KSC-32 (chargers not included; includes KSC-mobile bracket & cigarette lighter cable DC adapter)
	KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only

Carry Accessories [+]

	KBH-11 Spring action belt clip (2.5")
	KBH-8DS Leather swivel belt loop with portable D-Ring attachment
	KLH-137ST Firemen's Heavy-Duty Leather Shoulder Strap for a Heavy-Duty Leather Case (KLH-75B/76B/78B/79B//92/122/123/133/148/154)
	KLH-200K3 Heavy-duty leather carrying case for NX-5000 Series with KNB-L1/L2/L3/LS5CU(for both keypad models)
	KLH-201K3 Nylon carrying case for NX-5000-series with KNB-L1/L2/L3/LS5CU(for both keypad models)
	KLH-6SW Leather swivel belt loop / detachable swivel D-Ring back

Microphones and Audio Accessories [+]

	KCT-51 Hirose 6-pin Adapter (adapts KVL/aftermarket audio acc. to portable connector)[Intrinsically Safe Approved Accessory]
	KEP-1 3.5mm earphone kit for KMC-48GPS Speaker Mics
	KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic[KEP-2 & KMC-21 are not plug-compatible]
	KHS-11BL 2-wire palm mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]
	KHS-12BL 3-wire mini lapel mic w/earphone, universal connector (Black) [Intrinsically Safe Approved Accessory]
	KHS-14 Lightweight Single muff headset w/boom mic & In-line PTT [Intrinsically Safe Approved Accessory]
	KHS-15D-BH Heavy-duty noise reduction behind-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]
	KHS-15D-OH Heavy-duty noise reduction over-the-headset w/noise canceling boom mic & in-line PTT [Intrinsically Safe Approved Accessory]
	KMC-42WDM MIL-SPEC, IP67 (Immersion) Noise-canceling Speaker Mic [Intrinsically Safe Approved Accessory] Note: Radio does not have an IP67 Immersion option; meets MIL STD810 rain standards
	KMC-49 MIL-SPEC, Speaker Microphone with Antenna Connector Note: 5/16" Coax cable hex wrench included (antenna is not included).[Intrinsically Safe Option]
	KMC-54WDM MIL-SPEC, IP67 (Immersion) Speaker Mic Compatible with ANR Feature Note: ANR Feature with KMC-54WDM is only compatible with a NX-5000/3000 series portable

Special Color Housing [+]

KWD-OH-5000

Orange Housing Kit for NX-5000 Series Portables (Standard Key Model K2/K5 Only)

KWD-YH-5000

Yellow Housing Kit for NX-5000 Series Portables (Standard Key Model K2/K5 Only)

Standard Key Models

NX-5200K2 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300K2 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300K5 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5400K2 700 / 800 MHz, 3.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking

Full Key Models

NX-5200K3 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300K3 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300K6 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5400K3 700 / 800 MHz, 3.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking

CSA US APPROVED MODELS

NX-5200-ISCK2 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5200-ISCK3 VHF (136-174MHz), 6.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300-ISCK2 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300-ISCK3 UHF (450-520MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300-ISCK5 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5300-ISCK6 UHF (380-470MHz), 5.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking
NX-5400-ISCK2 700 / 800 MHz, 3.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking Standard Key Model
NX-5400-ISCK3 700 / 800 MHz, 3.0 Watts NXDN Conventional / TYPE-C (Gen1/Gen2) Trunking Full Key Model
