Kenwood

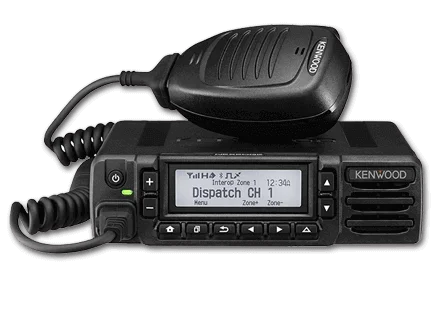

NX-3720HG/3820HG

The adaptable KENWOOD NX-3720HG and NX-3820HG mobile radios support both NXDN and DMR digital protocols as well as mixed digital FM analog operation, enabling them to serve with distinction in a wide range of enterprise- and operation-critical applications. Designed with flexibility in mind, they are packed with convenient features like Bluetooth® for hands-free operation and built-in GPS. And providing greater freedom of installation, the radio’s front panel can be used as a remote-control head (this requires an optional upgrade). Additionally, for expansion capability a software license certification system facilitates extensive customization.

Performance Characteristics

Frequency Band:
VHF/UHF

Frequency Range:
136-174 MHz / 400 - 470 MHz, 450-520 MHz

Power Output:
5W- 50W VHF / 5W - 45W UHF

Number of Channels/Groups/Zones:
512 Channels / 128 Zones (1,000 Channels optional)

Channel spacing:
12.5 / 15 / 25 / 30 kHz, 12.5 / 25 kHz Analog
6.25 / 12.5 kHz Digital

Physical Characteristics

Dimensions W x H x D
6.30 x 1.69 x 6.30 in

Weight
2.65 lbs

Keypad / Keys

Display
Full Dots Matrix (256(W) x 82（H)dots, Monochrome)

User Environment

Operating temperature
-22°F to +140°F

Mil spec
MIL-STD-810 C/D/E/F/G/H

IP Standards
IP54

Request A Quote

Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols
NXDN Conventional and Type-C & Gen2 Trunking
DMR Tier III Trunking
S-Trunking (Ver. UP)
DMR Auto Slot Select
Site Roaming
DMR Tier II conventional
Mixed Digital & FM Analog Operation allows gradual migration at your own pace
4-line Basic Frame (2-line Main/Sub-LCD, icon, & key guide) / 14 Characters
4-Line Text Message Frame (2 Lines ofText, icon & key guide)
7-color LED indicator
External and Internal Speaker Switching
Built-in GPS Receiver module for effective fleet management (G model only Optional KRA-40G Required)
Built-in Bluetooth for hands-free operation(G model only)
Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP

Brochures

Cables [+]

	KCT-71A100 KCT-71A Extended Control Head Cable (up to 100 ft. max.) Note: Please specify exact length at 1ft. increments when ordering. Caution: Extended control head cables exhibit a loss in speaker audio power to the control heads.
	KCT-71A50 KCT-71A Extended Control Head Cable (up to 50 ft. max.) Note: Please specify exact length at 1ft. increments when ordering. Caution: Extended control head cables exhibit a loss in speaker audio power to the control heads.
	KCT-71M2 Remote Control Cable (17 feet)
	KCT-71M3 Remote Control Cable (25 feet)
	KCT-71M4 Remote Control Cable (1.6 feet)

Control Station Accessories [+]

	KMB-34 Control Station Mounting Case for KPS-15 Power Supply and Mobiles (excludes TK-5x10/6110 series). (mobile mounting hardware included)
	KMC-59C Control Station Desktop Microphone (8-pin mod. plug) Note: Compatible with FDMA (analog) and TDMA operations.
	KMC-9C Control Station Desktop Microphone (8-pin mod. plug)
	KPS-15 DC Switching Power Supply (117/230 VAC; 23A max. continuous, 25A peak)

Front Panels & Remote Kits

KRK-18HM

Interface Kit for a Control Head

KRK-19BM

Interface Kit for an RF Deck

Microphones And Speakers [+]

	KCT-73MIC External Microphone kit w/9.8 ft. cord for Safer Driving
	KCT-74PTT External PTT Switch kit w/9.8 ft cord for Safer Driving
	KES-3S External speaker (compact low profile; black case; 3.5 mm phono plug-in)
	KES-5 External speaker, 40W max input Note: requires KCT-60M installed.
	KMC-35 MIL-SPEC Standard electret mobile microphone (8-pin mod. plug) - same as supplied
	KMC-36 MIL-SPEC Standard electret mobile microphone with 12-key DTMF (8-pin mod. plug)

Mobile Installation Accessories [+]

	KCT-18 Ignition sense cable (requires KCT-60M Acc. Cable Option)
	KCT-36 Extension Cable for KCT-34/35/39/40M/60M; 117.6 inches (9.8 ft)
	KCT-60M DB15-to-15pin Molex Adapter Cable
	KCT-72 External Accessory Connection Cable for KRK-18HM
	KLF-2 Line Filter (suppresses alternator whine, 25dB, 25A max).
	KMB-10 Key lock adapter
	KRA-40GM GPS Antenna

RADIO

NX-3720HGK VHF (136-174MHz), 50 Watts, 512 CH, 128 Zones
NX-3820HGK UHF (450 - 520MHz), 45 Watts, 512 CH, 128 Zones
NX-3820HGK2 UHF (400 - 470MHz), 45 Watts, 512 CH, 128 Zones

RADIO TRUNKING PACKAGE

NX-3720HGK-TR VHF (136-174MHz), 50 Watts, 512 CH, 128 Zones with NXDN Trunking
NX-3820HGK-TR UHF (450 - 520MHz), 45 Watts, 512 CH, 128 Zones with NXDN Trunking
NX-3820HGK2-TR UHF (400 - 470MHz), 45 Watts, 512 CH, 128 Zones with NXDN Trunking
