Kenwood

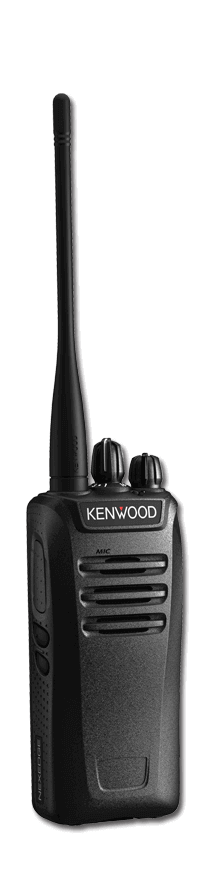

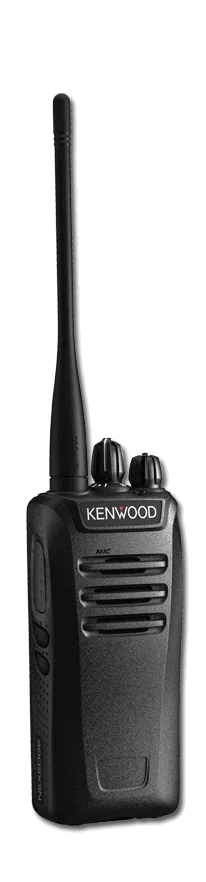

NX-240V/340U

Your business will have to adopt digital radios sooner or later, you know that, but you probably wonder when to make the extra investment. A leap into the unknown? Not with the KENWOOD NX-240V and NX-340U NEXEDGE portable radios. They operate in both analog FM and NXDN digital modes, offering a cost-effective way to migrate smoothly from legacy systems while discovering the benefits of advanced digital technology – including increased effective coverage area, low noise for superior clarity, and inherent secured voice. All this comes in a tough, compact radio that is easy to operate, delivers high-powered audio, and ensures round-the-clock reliability. Don’t delay the opportunity to expand the potential of your business.

Performance Characteristics

Frequency Band:
VHF, UJF

Frequency Range:
136-174 MHz / 400-470, 450-520 MHz

Power Output:
5W / 1W

Standard battery chemistry type:
Li-ion

Battery life (based on a 5-5-90 duty cycle):
10/12 Hours

Number of Channels/Groups/Zones:
32 Channels / 2 Zones

Channel spacing:
12.5 / 15 / 25* / 30* kHz 12.5 / 25* kHz Analog
12.5 / 25 kHz Digital

Physical Characteristics

Dimensions Dimensions W x H x D (with standard battery)
2.13 x 4.8 x 1.39 in

Weight (with standard battery)
9.9 oz

Keypad / Keys
No Keypad

Display
No Display

User Environment

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

Request A Quote

Selectable Digital & FM analog operation
Slim & Lightweight
Simple Operation
1W Loud Audio
Channel Number Voice announcement
NXDN Conventional
NXDN Type-D Digital Trunking
GPS Connectivity (Optional GPS SP-Mic Required)
4-Color LED (Blue/Red/Green/Orange)

Brochures

KENWOOD NX-240V/340U Brochure

Antenna [+]

	KRA-22M VHF low-profile antenna 148-162 MHz
	KRA-22M VHF low-profile antenna 162-174 MHz
	KRA-22M VHF Low-profile helical antenna 136-150 MHz
	KRA-23M UHF low-profile antenna 450-490 MHz
	KRA-23M2 UHF low-profile antenna 470-520 MHz
	KRA-23M3 UHF Low-profile helical antenna 403-430 MHz
	KRA-26M VHF helical antenna 146-162 MHz
	KRA-26M2 VHF helical antenna 162-174 MHz
	KRA-26M3 VHF helical antenna 136-150 MHz
	KRA-27M UHF whip antenna 440-490 MHz
	KRA-27M2 UHF whip antenna 470-520 MHz
	KRA-27M3 UHF whip antenna 400-450 MHz
	KRA-41M VHF stubby antenna 148-162 MHz
	KRA-41M2 VHF stubby antenna 162-174 MHz
	KRA-41M3 VHF stubby antenna 136-150 MHz
	KRA-42M UHF stubby antenna 440-490 MHz
	KRA-42M2 UHF stubby antenna 470-520 MHz
	KRA-42M3 UHF stubby antenna 403-430 MHz

Batteries and Charging [+]

	KMB-28AK Six Unit Charger Adapter for the KSC-23BK/28/35SK chargers (chargers not included) Note: The six KSC-xx AC wall Adapters are NOT used in the KMB-28 installation A supplied in-line AC-DC switching power supply with six DC plugs supply the six installed KSC-xx charger bases. This unit is lower profile and less weight than similar Kenwood six unit charger adapters.
	KNB-29N 1500 mAh, NiMH battery - requires KSC-43K charger
	KNB-45L 2000 mAh, Li-ion battery - requires KSC-35K/SK charger
	KNB-69L 2550 mAh, Li-ion battery - requires KSC-35K/SK charger
	KNB-82LCM CSA US Intrinsically Safe Battery Li-ion 2000mAh, battery only[Intrinsically Safe Option]
	KSC-35SK 110~220 volt Fast rate single unit charger for KNB-45L/69L
	KSC-43K 110~220 volt Fast rate single unit charger for KNB-29N/45L/69L
	KVC-22 110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included)

Carry Accessories [+]

KBH-10

Spring action belt clip

KBH-8DS

Leather swivel belt loop with portable D-Ring attachment

KLH-187

Nylon case for TK-*200/*202/*300/*302/*400/*402 Series

Microphones and Audio Accessories [+]

	KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic [KEP-2 & KMC-21 are not plug-compatible]
	KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT
	KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT
	KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear
	KHS-26 Clip Mic w/earphone
	KHS-27A D-Ring Ear Hanger w/PTT & Mic
	KHS-31C C-Ring Ear Hanger w/PTT & Mic
	KHS-7 Single muff headset w/boom mic
	KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT
	KHS-8BL Two-Wire palm mic w/earphone (black)
	KHS-9BL Three-Wire lapel mic w/earphone (black)
	KMC-21 Compact speaker microphone
	KMC-45D MIL-SPEC, IP54/55 Speaker microphone (Built-in 2.5mm miniature earphone jack)

NX-240VK 136-174 MHz VHF 5W, 16 Ch / 2 Zones
NX-340UK 450-520 MHz UHF 5W, 16 Ch / 2 Zones
NX-340UK2 400-470 MHz UHF 5W, 16 Ch / 2 Zones
NX-240-ISCVK 136-174 MHz VHF 5W, 16 Ch / 2 Zones Note: Can be used in Class I Gas Environment only
NX-340-ISCUK 450-520 MHz UHF 5W, 16 Ch / 2 Zones Note: Can be used in Class I Gas Environment only
NX-340-ISCUK2 400-470 MHz UHF 5W, 16 Ch / 2 Zones Note: Can be used in Class I Gas Environment only
