Kenwood

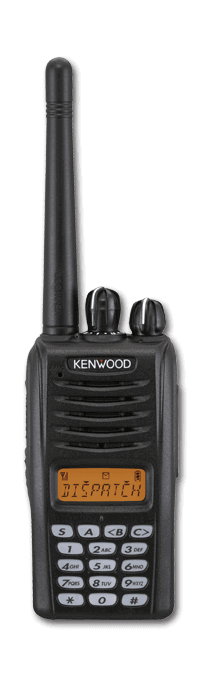

NX-220/320

The KENWOOD NX-220 and NX-320 VHF & UHF 5W radios deliver a cost benefit, full-featured digital portable radio solution to enterprise, local government and SMR subscribers. True to the NEXEDGE multi-system migration-ready tradition, analog, NXDN® conventional, and NXDN® trunking, are included in all models. The NX-220 and NX-320 NEXEDGE® models include the latest V2.5 enhancements such as OTAP over-the-air programming and ground-breaking NEXEDGE® enhanced audio refinements.

Performance Characteristics

Frequency Band:
VHF, UHF

Frequency Range:
136-174 MHz / 400-470, 450-520 MHz

Power Output:
5W / 1W

Standard battery chemistry type:
Li-ion

Battery life (based on a 5-5-90 duty cycle):
14.5 hours

Number of Channels/Groups/Zones:
260 Channels / 128 Zones - 64 Channels / 4 Zones

Channel spacing:
12.5 / 15 / 25* / 30* kHz 12.5 / 25* kHz Analog
12.5 / 25 kHz Digital

Physical Characteristics

Dimensions W x H x D (with standard battery)
2.20 x 4.35 x 1.48 in

Weight (with standard battery)
10.76 oz

Keypad / Keys
12-Key Keypad Models

Display
8 Character Alphanumeric Aliases

User Environment

Operating temperature
-22˚ F to +140˚ F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55

Request A Quote

Mixed Digital & FM Analog Operation
Compact Body
Backlit 13 segments/8 digits LCD
Non-LCD/Non 12-keypad version available
Built-in Motion Sensor & Advanced Staff Save Functions
Zone / CH Number Voice Announcement
Analog Trunking Option (LTR/MPT1327)
GPS Connectivity (Optional GPS SP-Mic Required)
4-Color LED (Blue/Red/Green/Orange)
NXDN Type-D Trunking Option
dPMR Software Option
Intrinsically Safe Option Available

Brochure

KENWOOD NX-220/320 Brochure

Antenna [+]

	KRA-22M VHF low-profile antenna 148-162 MHz
	KRA-22M VHF low-profile antenna 162-174 MHz
	KRA-22M VHF Low-profile helical antenna 136-150 MHz
	KRA-23M UHF low-profile antenna 450-490 MHz
	KRA-23M2 UHF low-profile antenna 470-520 MHz
	KRA-23M3 UHF Low-profile helical antenna 403-430 MHz
	KRA-26M VHF helical antenna 146-162 MHz
	KRA-26M2 VHF helical antenna 162-174 MHz
	KRA-26M3 VHF helical antenna 136-150 MHz
	KRA-27M UHF whip antenna 440-490 MHz
	KRA-27M2 UHF whip antenna 470-520 MHz
	KRA-27M3 UHF whip antenna 400-450 MHz

Batteries and Charging [+]

	KBP-5 AA Alkaline Refillable Battery Pack (6 AA; 9V) cells not included
	KMB-16 Six Unit Charger Adapter for the KSC-16/20/24/25/25L chargers (chargers not included)
	KMB-23 Six Unit Charger Adapter for the KSC-16/20/24/25/25L/32 chargers (chargers not included)
	KNB-55L 1480 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger
	KNB-56N 1400 mAh, Ni-MH battery
	KNB-57LAM 2000 mAh, Li-ion battery requires KSC-25SK/25LSK/256K/256AK charger
	KNB-68LC 2000 mAh, Li-ion battery - requires KSC-25SK/25LSK/256K/256AK charger [Intrinsically Safe Option]
	KSC-256AK Rapid-rate 6-Unit charger for KNB-26N/55L/56N/57L/57LAM/68LC/78LM/79LCM
	KSC-25LSK 100~240 volt rapid rate single unit charger for KNB-40LC(V)/55L/57L/57LAM/68LC Li-ion Battery
	KSC-25SK 110 volt Rapid-rate single-unit charger for KNB-26N/40LC(V)/55L/56N/57L/57LAM/68LC
	KVC-23 Rapid-rate DC vehicular charger for TK-5x10/5x20, NX-5x00/x00/x10/x20, TK-x180, TK-x170, & TK-x360 portables with Lithium Ion/Lithium Polymer/NiMH packs only
	KVC-4 Vehicular charger adapter for the KSC-16/18/20/24/25SK chargers (chargers not included) *KSC-25LSK is not compatible with KVC-4.

Carry Accessories [+]

	KBH-12 Spring action belt clip
	KBH-13DS Leather swivel belt loop with portable D-Ring attachment
	KLH-179K Heavy-Duty Leather Case w/Swivel Belt Loop for NX-220K/320K/K4 (Non Display)
	KLH-179K2 Heavy-Duty Leather Case w/Swivel Belt Loop for NX-220K2/320K2/K5 (Display)
	KLH-179K3 Heavy-Duty Leather Case w/Swivel Belt Loop for NX-220K3/320K3/K6/420K3 (Full Keypad)
	KLH-180K Nylon carrying case for NX-220K/320K/K4 (Non Display)
	KLH-180K2 Nylon carrying case for NX-220K2/320K2/K5 (Display)
	KLH-180K3 Nylon carrying case for NX-220K3/320K3/K6/420K3 (Full Keypad)

Microphones and Audio Accessories [+]

	KEP-2 2.5mm earphone kit for KMC-17/45D Speaker Mic [KEP-2 & KMC-21 are not plug-compatible]
	KHS-10D-BH Heavy-duty behind-the-headset w/noise canceling boom mic & in-line PTT
	KHS-10D-OH Heavy-duty over-the-headset w/noise canceling boom mic & in-line PTT
	KHS-22 Behind-the-Head Headset with flexible boom mic and in-line PTT single ear
	KHS-26 Clip Mic w/earphone
	KHS-27A D-Ring Ear Hanger w/PTT & Mic
	KHS-31C C-Ring Ear Hanger w/PTT & Mic
	KHS-7 Single muff headset w/boom mic
	KHS-7A Lt. Wt Single muff headset w/boom mic & in-line PTT
	KHS-8BL Two-Wire palm mic w/earphone (black)
	KHS-9BL Three-Wire lapel mic w/earphone (black)
	KMC-21 Compact speaker microphone
	KMC-48GPS GPS Speaker Microphone

NX-220K-TD 136-174 MHz 5W, 64 CH, Type-D
NX-220K2-TD 136-174 MHz 5W, 260 CH, 8 characters LCD, 4 PF Keys, Type-D
NX-220K3-TD 136-174 MHz 5W, 260 CH, 8 characters LCD, 4 PF Keys, Full Keypad, Type-D
NX-320K-TD 450-520 MHz 5W, 64 CH, Type-D
NX-320K2-TD 450-520 MHz 5W, 260 CH, 8 characters LCD, 4 PF Keys, Type-D
NX-320K3-TD 450-520 MHz 5W, 260 CH, 8 characters LCD, 4 PF Keys, Full Keypad, Type-D
NX-320K4-TD 400-470 MHz 5W, 64 CH, Type-D
NX-320K5-TD 400-470 MHz 5W, 260 CH, 8 characters LCD, 4 PF Keys, Type-D
NX-320K6-TD 400-470 MHz 5W, 260 CH, 8 characters LCD, 4 PF Keys, Full Keypad, Type-D
