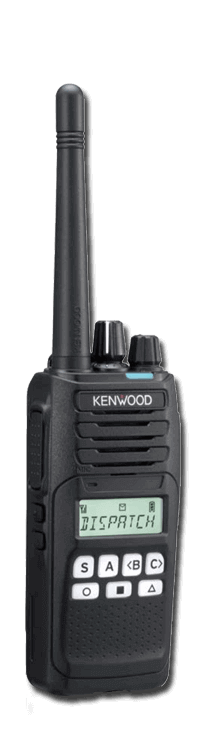

Kenwood

NX-1200DV/1300DU

ONE-“K”-FITS-ALL: A SINGULAR SOLUTION

If you are thinking of harnessing the latest digital protocols – NXDN or DMR – to enhance business efficiency or FM analog for its simplicity, the NX-1200/1300 has you covered. KENWOOD’s One-“K”-Fits-All solution offers the widest selection of two-way radios for everyday use. The model matrix also includes basic and keypad variations, with or without a high-contrast backlit LCD. Other features include a 7-color LED indicator and the popular KENWOOD 2-pin audio accessory connector. Plus, mixed-mode operation ensures seamless integration with legacy radios while smoothing the onward migration path to digital. But whatever your specific needs, audio quality is what determines clear voice communications – which is why KENWOOD radios are used under the most grueling conditions, like the cockpit of a racing car. Thanks to KENWOOD’s extensive experience with professional systems, reliability is second to none. So, whatever your radio requirements, KENWOOD’s NX-1200/1300 offers a single platform that’s right for you.

Performance Characteristics

Frequency Band:
VHF/UHF

Frequency Range:
136-174MHz, 450-520MHz, 400-470MHz

Power Output:
5W / 4W / 1W

Standard battery chemistry type:

Battery life (based on a 5-5-90 duty cycle):
Approx. 14.5 hours

Number of Channels/Groups/Zones:

Channel spacing:
12.5 / 15 / 25 30 kHz, 12.5 / 25 kHz Analog - 6.25 / 12.5 kHz Digital

Physical Characteristics

Dimensions W x H x D (with standard battery)
2..13 x 4.84 x 1.32 in

Weight (with standard battery)
10.41oz

Keypad / Keys
8-Digit LCD Models

Display
High-Contrast, White Backlit LCD With Keypad or Basic Enclosure Models

User Environment

Operating temperature
-22 F to + 140F

Mil spec
MIL-STD-810 C/D/E/F/G

IP Standards
IP54/55, IP67 (Optional)

Request A Quote

Wide variations, “One” platform: To meet various demands — NXDN or DMR digital CAI and FM analog only models are available
Choose from direct & intuitive LCD with standard keypad or basic enclosures
Easy visible Display: 8-digit LCD models featuring high-contrast, white backlit LCD
Large 7-Color LED indicator on the top panel
Selective Power-on LED
Selective Call Alert LED
Battery Level Indication
Multi-status function indication
RF output power 5W both on VHF/UHF
Wide band UHF 70MHz coverage
Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable digital processor
Audio Equalizer: Flat, High, Low
Auto Gain Control: On, High, Low, Off
Noise Suppressor
Microphone type settings
Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi, Normal Scan
VOX & PTT –triggered Semi- VOX, Voice-operated TX
Emergency Function: Customizable Emergency Profile
Lone Worker
Max / Min Volume setting & Volume control
Voice Announcement
Remote Stun / Kill / Check
Front Panel Programming Mode (for Keypad model)
Electronic Serial Number (ESN)
MIL-STD-810 C/D/E/F/G
IP54 and IP55
Intrinsically safe option (Available later)

Brochure

KENWOOD NX-1200/1300 Brochure

Antenna [+]

	KRA-22M VHF low-profile antenna 148-162 MHz
	KRA-22M VHF low-profile antenna 162-174 MHz
	KRA-22M VHF Low-profile helical antenna 136-150 MHz
	KRA-23M UHF low-profile antenna 450-490 MHz
	KRA-23M2 UHF low-profile antenna 470-520 MHz
	KRA-23M3 UHF Low-profile helical antenna 403-430 MHz
	KRA-26M VHF helical antenna 146-162 MHz
	KRA-26M2 VHF helical antenna 162-174 MHz
	KRA-26M3 VHF helical antenna 136-150 MHz
	KRA-27M UHF whip antenna 440-490 MHz
	KRA-27M2 UHF whip antenna 470-520 MHz
	KRA-27M3 UHF whip antenna 400-450 MHz
	KRA-41M VHF stubby antenna 148-162 MHz
	KRA-41M2 VHF stubby antenna 162-174 MHz
	KRA-41M3 VHF stubby antenna 136-150 MHz
	KRA-42M UHF stubby antenna 440-490 MHz
	KRA-42M2 UHF stubby antenna 470-520 MHz
	KRA-42M3 UHF stubby antenna 403-430 MHz

Batteries and Charging [+]

	KNB-45L 2000 mAh, Li-ion battery - requires KSC-35K/SK charger
	KNB-69L 2550 mAh, Li-ion battery - requires KSC-35K/SK charger
	KNB-53N Ni-MH BATTERY PACK (7.2 V/1400 mAh)
	KNB-82LC Li-ion Battery Pack (7.4 V/1900 mAh, Intrinsically Safe)
	KSC-35S Rapid Charger (for Li-ion KNB- 45L/69L/82LC)
	KSC-43 Rapid Charger (for Li-ion KNB-45L/69L/82LC & Ni-MH KNB-53N)
	KSC-356A Multiple Charger (6-pocket for Li-ion KNB-45L/69L/82LC)
	KSC-35SCR Charger Pocket (6-pocket for KMB-35A)
	KMB-35A Multi Charger Adapter (for KSC-35SCR)
	KVC-22 110~220 volt Fast rate DC vehicular charger adapter for KSC-35SK charger & KNB-45L Li-ion battery (charger not included)
